- 👍Feature: Our beam combiner base is integrated with the first laser reflective mirror mount, you do not need to purchase the first mirror mount additionally. First Mirror Mount is Detachable and Adjustable.
- 👍Material: Beam Combiner Base is Made of Aluminium with Black Oxidiation Coating. Beam Combiner Lens is Made of USA CVD ZnSe Crystal.
- 👍Fit for: CO2 Laser Reflective Mirror Diameter: 25mm. Beam Combiner Lens Diameter: 25mm.

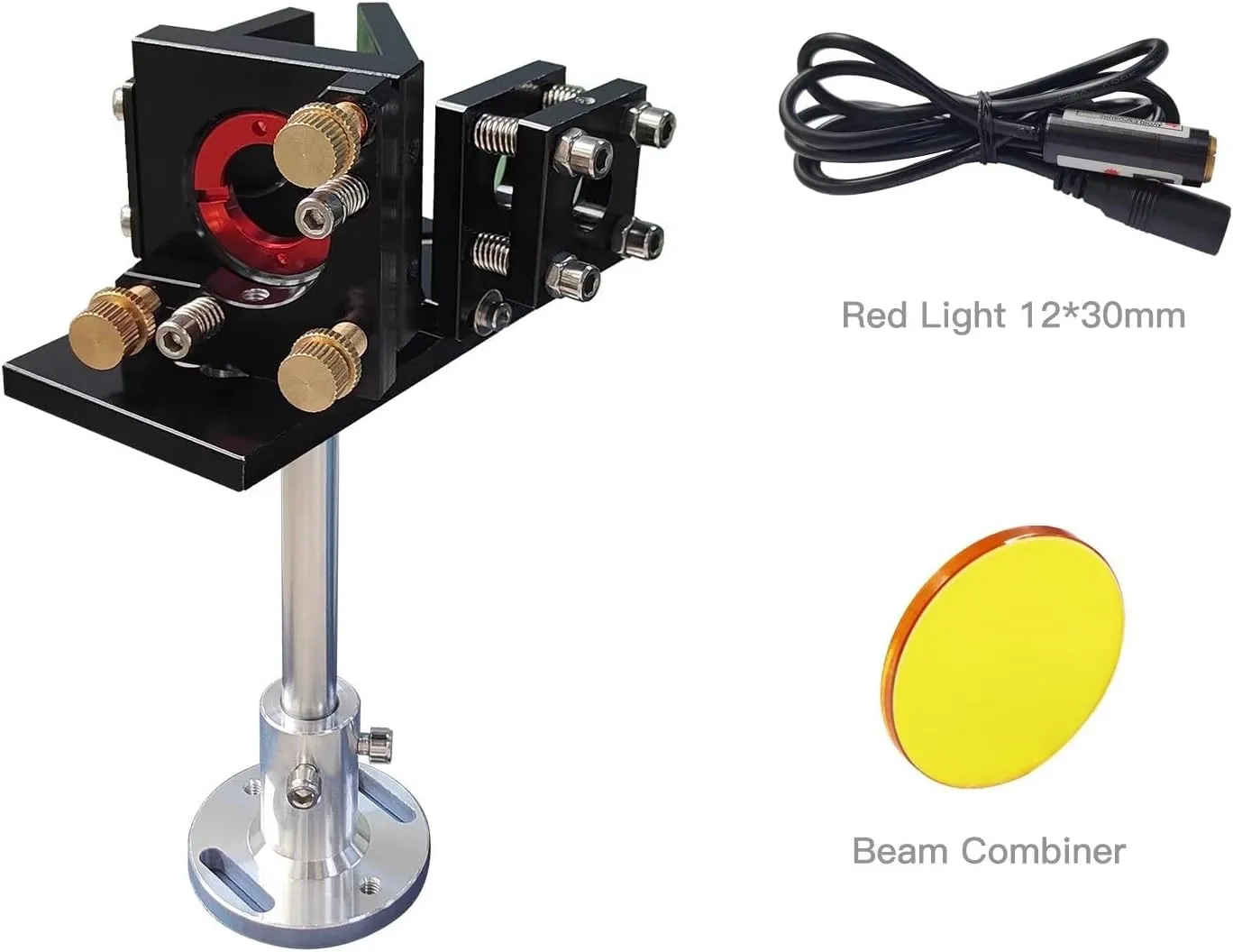

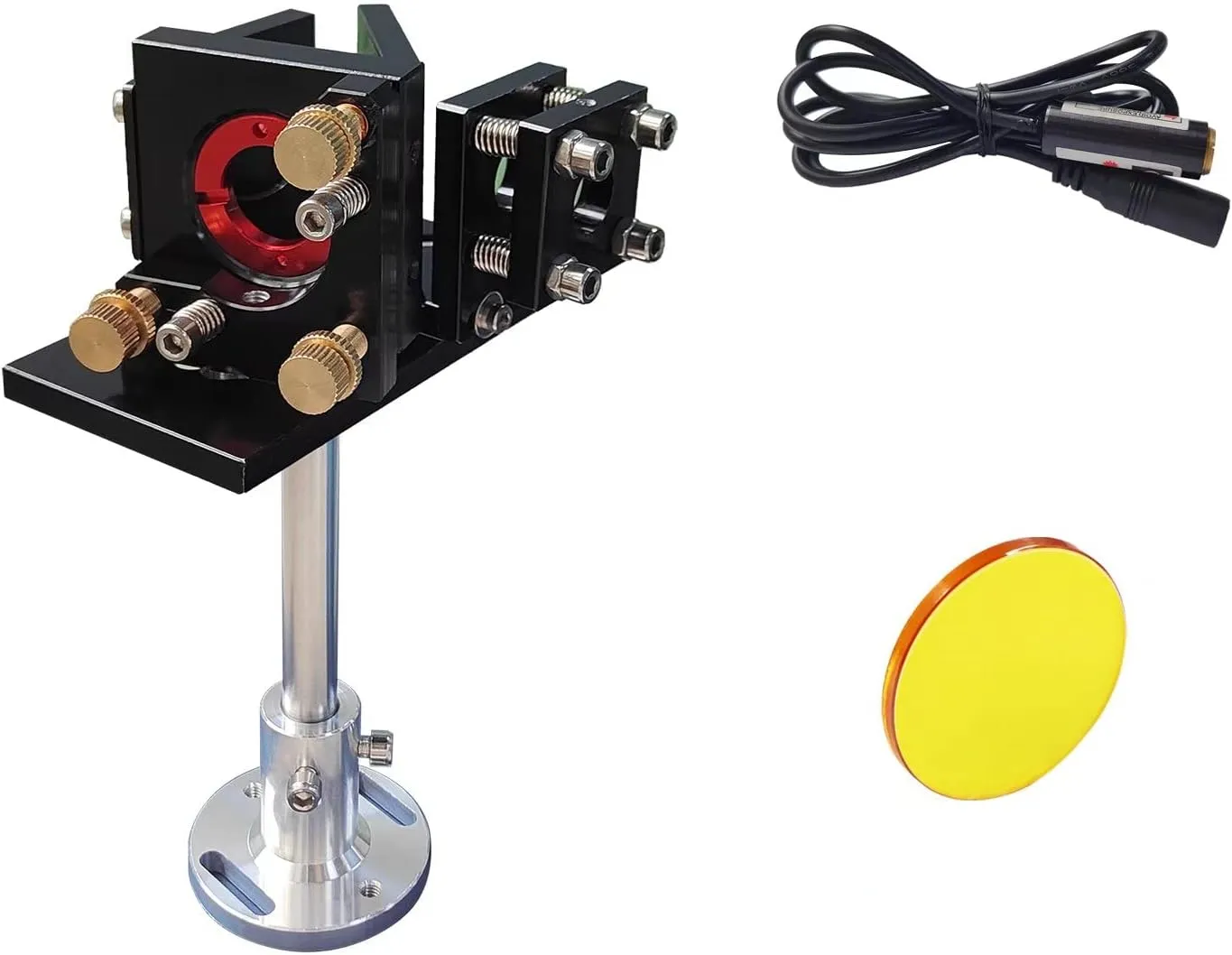

- 👍Package: 1Pcs Beam Combiner Base 1Pcs Beam Combiner Dia.25mm 1Pcs Red Pointer Dia.12mm(Connected to a 5V switching power supply).

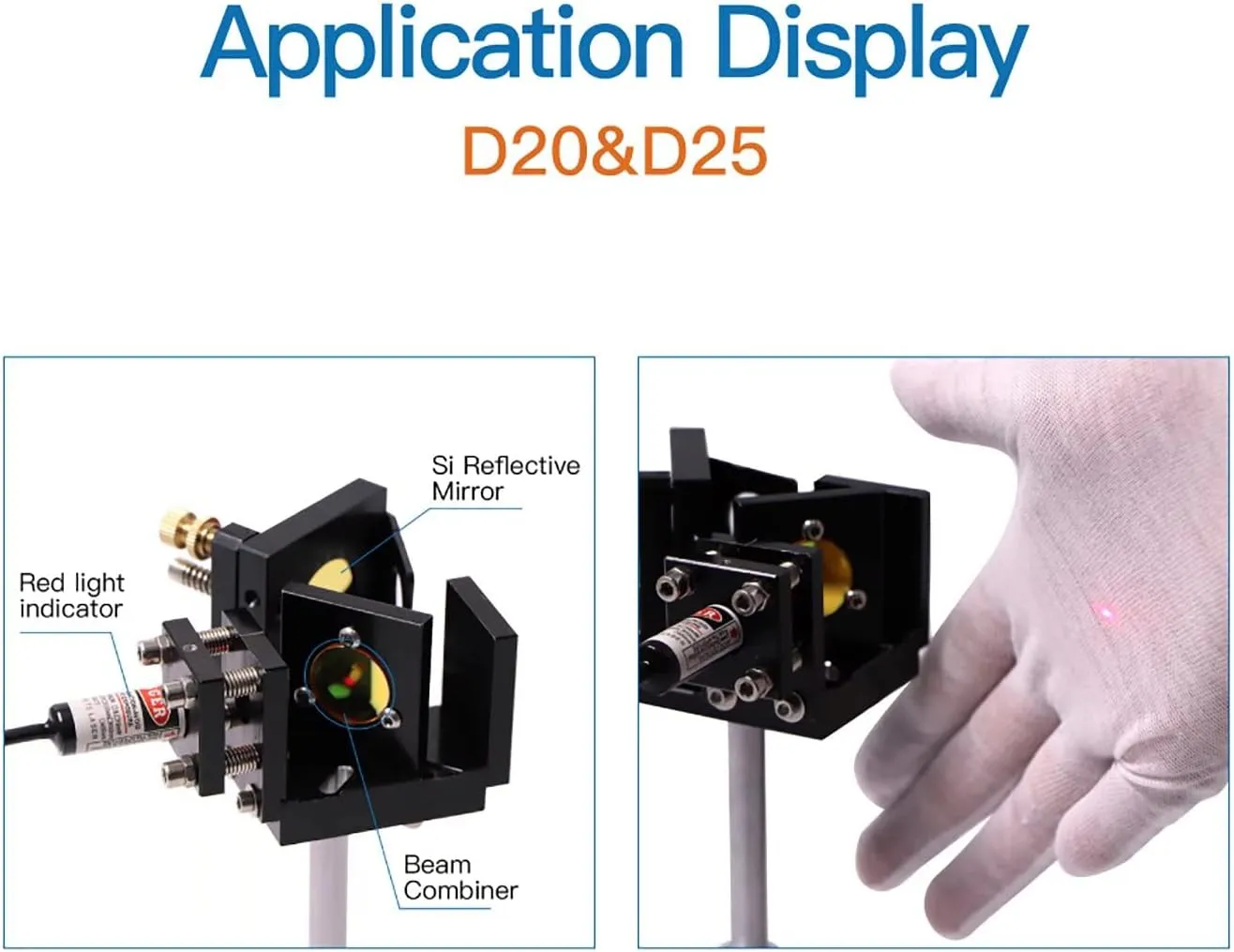

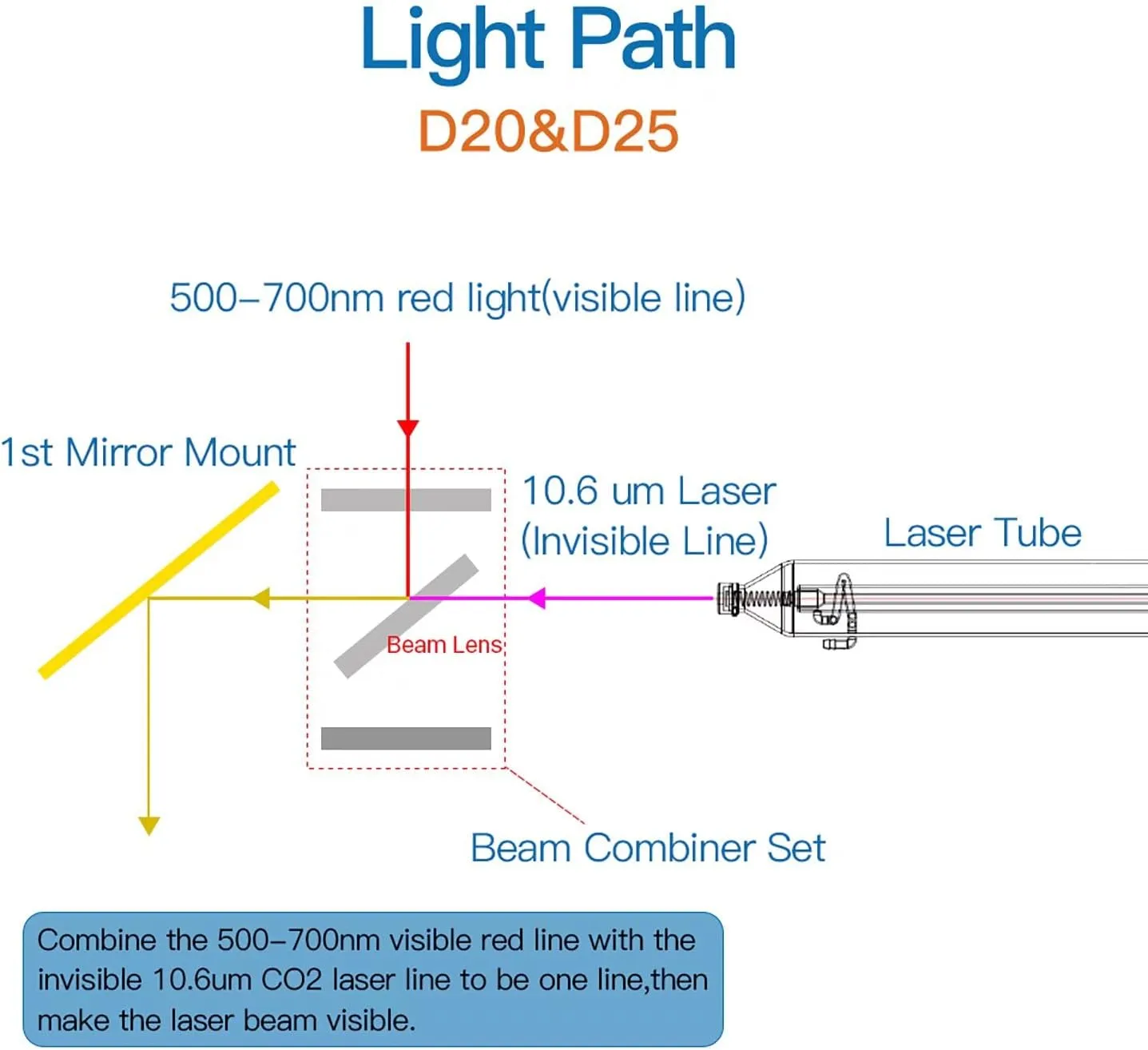

- 👍Functions: Combine the 500-700nm visible red line with the invisible 10.6um co2 laser line to e one line, then make the laser beam visible.
FONLAND CO2 Beam Combiner Base & Lens Set for CO2 Laser Engraving Cutting Machine
Features
Our beam combiner base is integrated with the first laser reflective mirror mount, you do not need to purchase the first mirror mount additionally.
First Mirror Mount is Detachable and Adjustable.
Beam Combiner Base is Made of Aluminium with Black Oxidiation Coating.

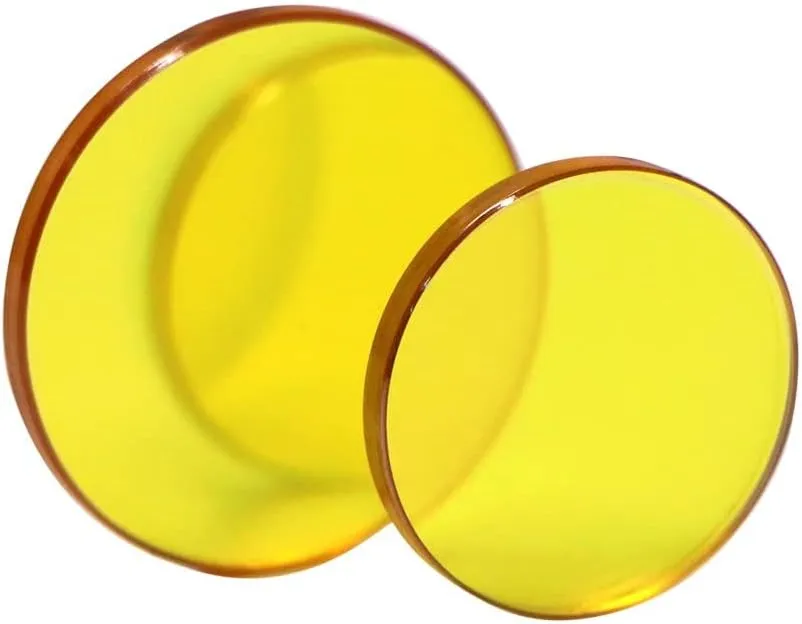

Beam Combiner Lens is Made of USA CVD ZnSe Crystal.

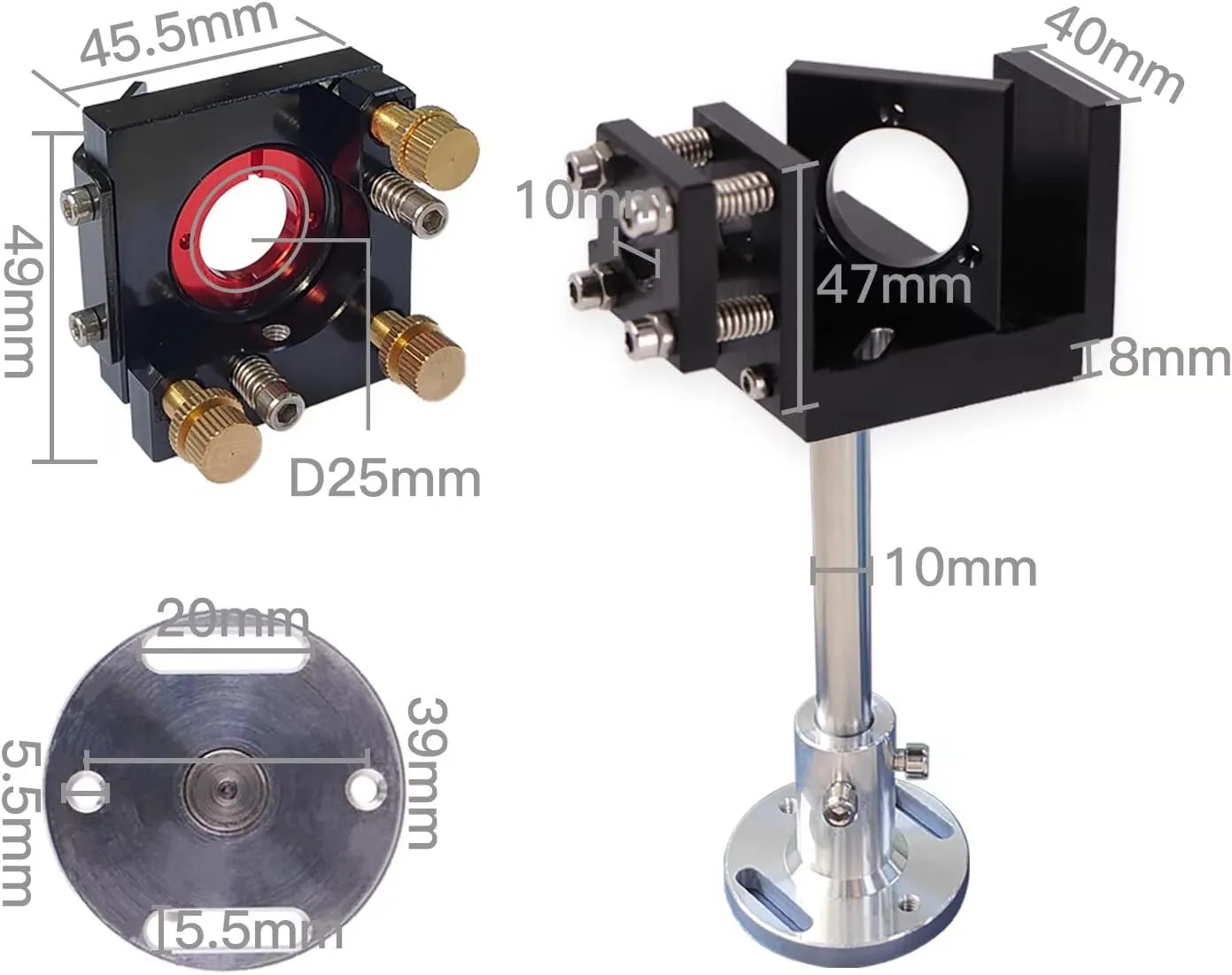

Laser Mirror Mount Diameter: 25mm

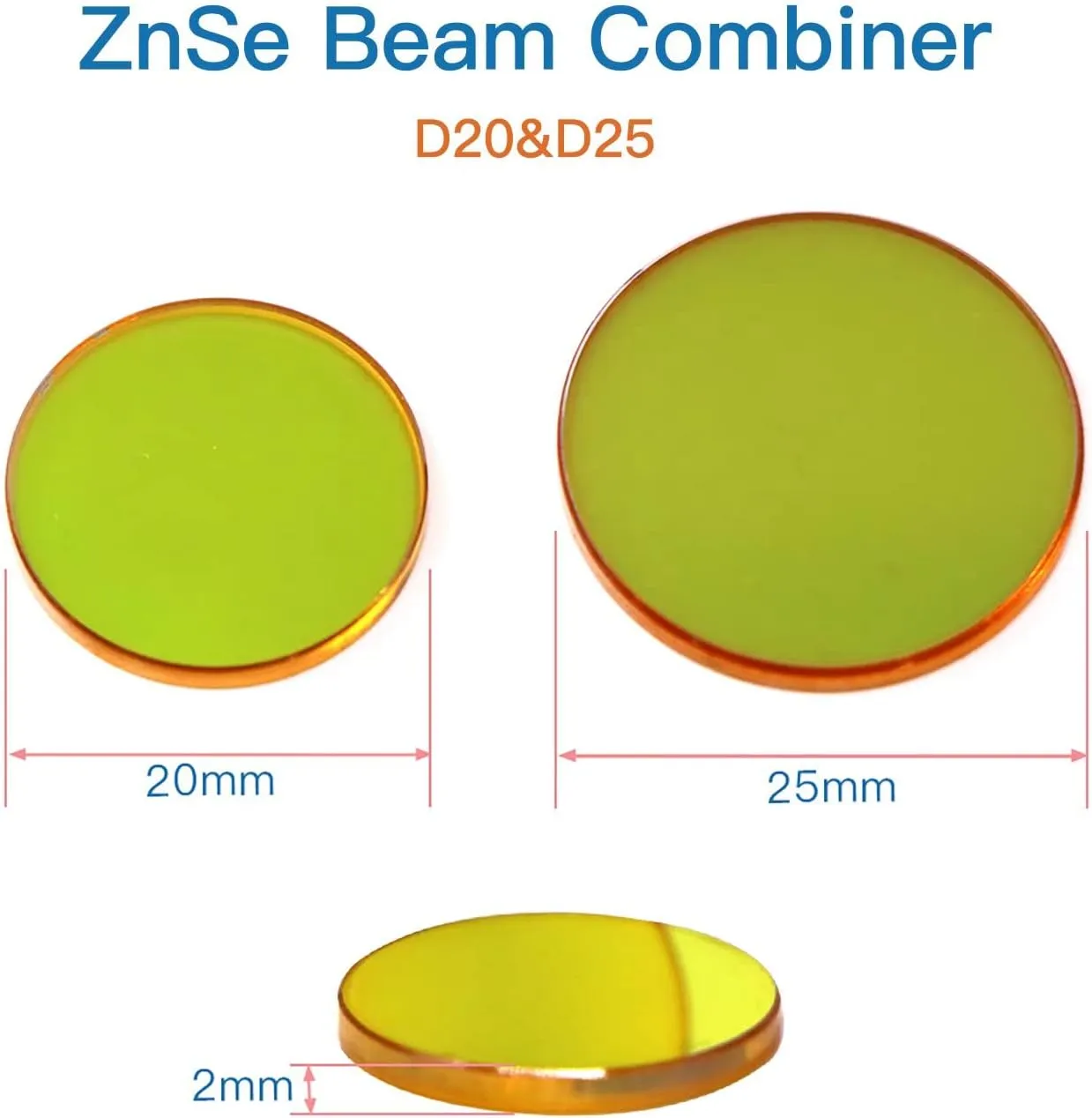

Beam Combiner Lens Diameter: 20mm or 25mm
Stand Height Adjustable: 108-132mm
Red Laser Pointer Diameter: 12mm
Red Laser Pointer Length: 90±2mm
Four Packaging Specifications:
① 1 * Beam Combiner Base Dia.20mm
② 1 * Beam Combiner Base Dia.25mm
③ 1 * Beam Combiner Base Dia.20mm; 1 * Beam Combiner Lens Dia.20mm; 1 * Red Pointer Dia.12mm
④ 1 * Beam Combiner Base Dia.25mm; 1 * Beam Combiner Lens Dia.25mm; 1 * Red Pointer Dia.12mm
Note
This unit is merged with the first mirror mount, which can only be used for one laser tube, Two laser tubes need two 1st Mirror Mount.
