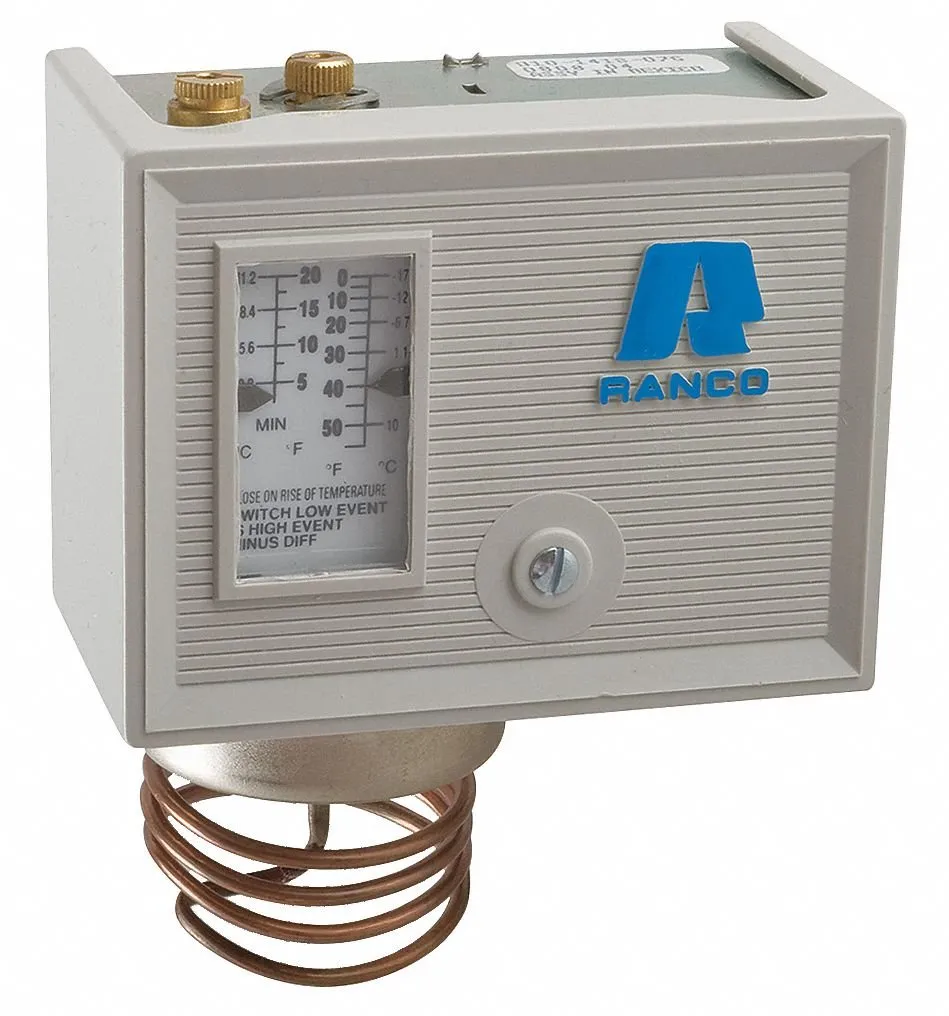

Item: Refrigeration Control
Type: Medium Temp.
Switch Type: SPST
Switch Action: Close on Rise, Automatic Reset
Control Range (F): 25 to 75
Temp. Differential High (F): 3 to 20
Temp. Differential Low (F): 6 to 25
Height (In.): 2-3/4
Width (In.): 3-1/2
Depth (In.): 2
Capillary Type: Capillary w/Air Coil Sensor
Bulb Size Length (In.): 1-1/2 x 1-1/4 Air Sensing Coil
Voltage: 120
Locked Rotor Amps: 144
Full Load Amps: 24
Pilot Duty Contacts (VA): 720
Construction: Bellows are Laser welded, For Extended Life, Compact Case is Zinc Plated, Pressed Steel, Has a NEMA 1 Non-conductive, Non-corrosive Cover which is Retained by a Captive, Accessible Screw
Application: Suitable for Line or Pilot Duty Cycling of Motors, Compressors or Solenoid Valves, Medium Temperature Control
Agency Compliance: UL Listed
Includes: Dual Temperature Scale, Fahrenheit and Celsius Readings, Mounting Bracket, Mounting Screws, Terminal Screws, Adjustment Knob
- Package Dimensions : 2 x 2 x 2 inches; 1 Pounds
- Date First Available : June 5, 2010
- Manufacturer : CAI - RANCO
