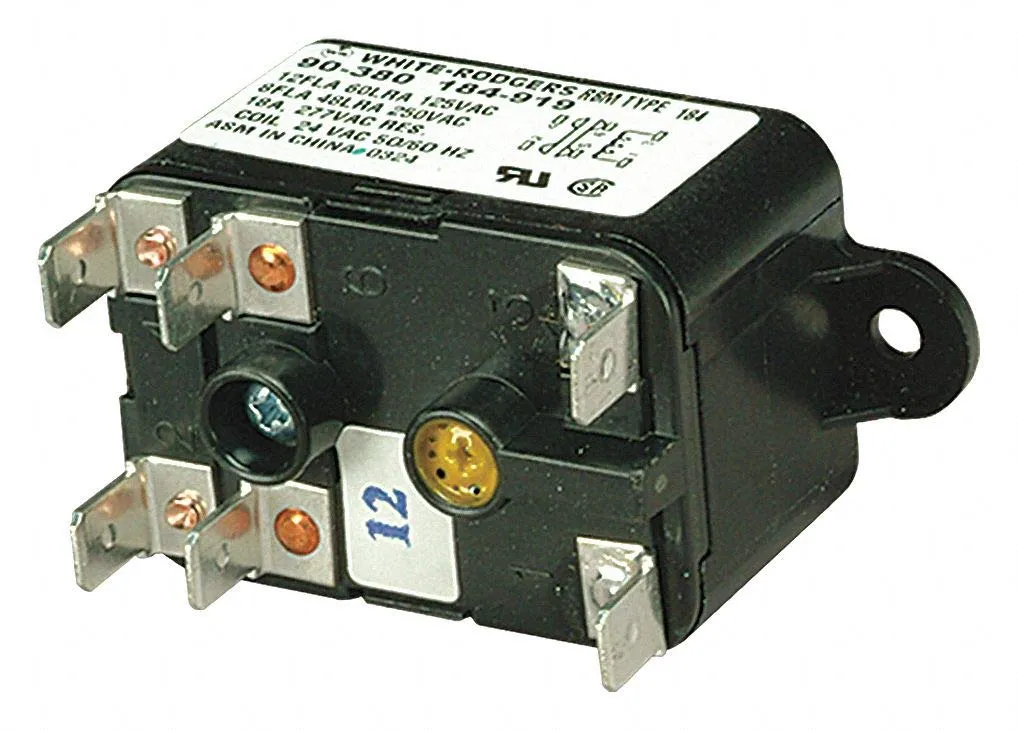

Featuring a compact, totally-enclosed design, this WHITE-RODGERS magnetic relay provides quiet and reliable performance in most heating/cooling applications and in general switching. Model can operate in any position. Temp. range: -40° to 150°F Mechanical life (no load): 1,000,000 operations (120 operations/min.) Electrical life (rated load): 100,000 operations (6 operations/min.)

Item: Magnetic Relay
Type: Enclosed Fan Relay (Heavy-Duty)
Coil Volts: 24
Switch Type: SPNO/SPNC
Resistive Amps @ 120V: 18
Full Load Amps @ 120VAC: 12
Resistive Amps @ 240V: 18
Full Load Amps @ 240VAC: 8
Resistive Amps @ 277V: 6
Height (In.): 1-1/2
Width (In.): 1-1/4
Depth (In.): 2-2/3
Mounting: Universal
Application: For Switching Single or Two-speed Fan Motors, Solenoids, Relays, Resistive Loads and other General-purpose Switching
Agency Compliance: UL
Includes: Quick Connect Push On Terminals

• Package Dimensions ‏ : ‎ 2 x 2 x 2 inches; 2.4 ounces
• Date First Available ‏ : ‎ March 10, 2010
• Manufacturer ‏ : ‎ CAI - WHITE-RODGERS
